WUPP Boat Marine Fuse Block Panel with LED Warning Indicator Damp-Proof Cover - 12 Circuits with Negative Bus Fuse Box Holder Screw for Car Marine RV Truck DC 12-24V, Fuses Included
Description
| Item model number | CS-664A2 |
| Item dimensions L x W x H | 5.44 x 3.35 x 1.44 inches |
| Product Dimensions | 5.44 x 3.35 x 1.44 inches |
| Mounting Type | Panel Mount |
| Color | Screw Terminal |
| Brand | WUPP |
| Material | nickel-plated copper connection terminal, Polybutylene Terephthalate (PBT), Polycarbonate (PC) |
| Manufacturer Part Number | CS-664A2 |
| Item Weight | 12 ounces |
| Voltage | 12 Volts |
| Special Features | fuses Included, led warning indicator, fuse box with negative bus |
| Manufacturer | WUPP |
| Is Discontinued By Manufacturer | No |
| Model | CS-664A2 |
| Size | 12-circ W/Cover & Neg |
- QUICK FIX: Red LED warning light will light up immediately when the corresponding fuse is blown. WUPP Automotive fuse block will indicate exactly where there is a short circuit or any other fault so you can easily identify it and change it!
- MAKE WIRING CLEAN: Instead of piling a mess of wires and fuse block holders onto your battery posts, WUPP 12 volt fuse block/ground bus kit gives you 12 dedicated fuses and 12 ground locations to keep all of your wires clean, organized, and accessible. Made wiring electronics in your vehicles or boat a breeze!
- WELLBUILD MATERIAL: Made of environment-friendly PBT material, WUPP 12-volt fuse block meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit phenomenon
- UNIVERSAL PROTECTION: Whether you're building a massive overland lighting setup or adding power windows to your classic. WUPP fuse block with 100 Amps capacity, 30 Amps per fuse, and ground bus bar are more than capable of protecting all of your hard work.
- FREE BLADE FUSES: 12 Way Fuse Block Package includes: 20A Fuse*6, 15A Fuse*6, 10A Fuse*6, 5A Fuse*6, Labels*2, Screws*4
Product Description
All automotive electrical projects need to be properly protected: that means each and every circuit. WUPP fuse block are an effective method of protection to prevent damage to wiring and possible fire in the event of an over-loaded or short circuit.
This WUPP space-saving fuse block can provide protection for new installations or when the panel has run out of breakers. Often used for electronic installations, this fuse block can be fed by one breaker from the distribution panel and supply power 12 additional circuits. Compact size allows it to be installed in tight spaces close to the loads they protect. Available with a ground bus to match the requirements of your application.
All buses and fuse clips are tin plated copper for corrosion resistance and optimal electrical conductivity.
All ST Blade fuse blocks utilize a speciazed fuse clip that is designed to hold fuses in place in the harshest conditions.
WUPP fuse block will be your choice!
MAIN FEATURES

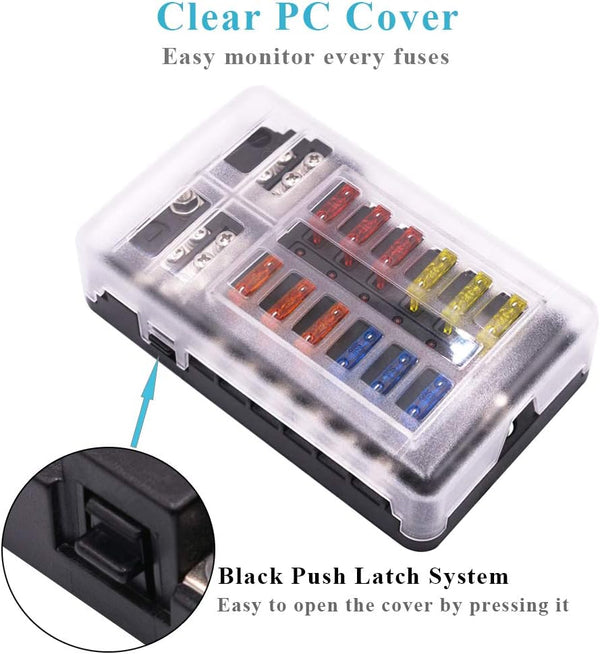

QUICK FIXWUPP 12 volt fuse block will indicate exactly where there is a short circuit or any other fault so you can easily identify it and change it! | CLEAR FUSE PROTECTION COVERInsulating cover with black push latch system, easy to open the cover by pressing it. Also this transparent design also helps to add extra protection to your fuse box & fuses | MAKE WIRING CLEANInstead of piling a mess of wires and fuse holders onto your battery posts, WUPP 12 volt fuse block/ground bus kit gives you 12 dedicated fuses and 12 ground locations to keep all of your wires clean, organized, and accessible. Made wiring electronics in your vehicles or boat a breeze! |

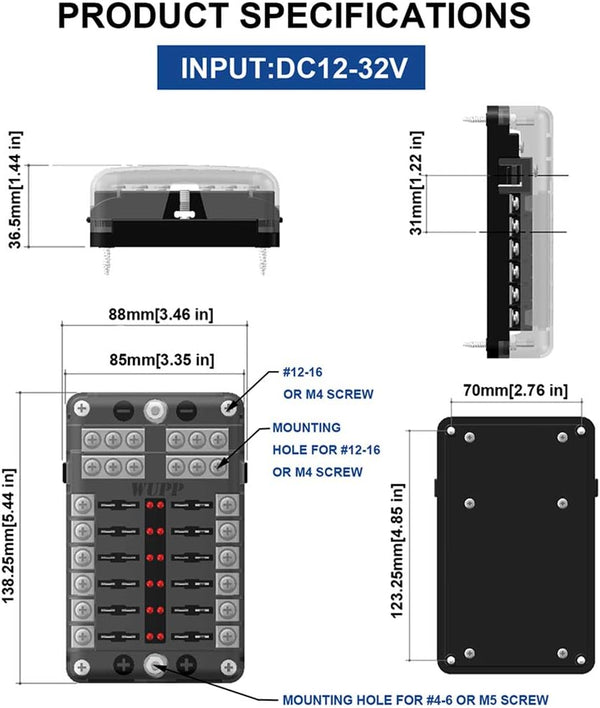

SPECIFICATIONS
| Input Voltage | 12V-24V DC |
| Maximum Amperage | 100A per block/ 30A per circuit |
| Maximum Voltage | 32V |
| Quantity of Fuse Slots | 12 |
| Main Line Terminal | M5 threaded stud |
| Main Wire | ＃4-6 |
| Single Wire Terminal | M4 threaded stud |
| Single Wire | #12-16 |
| Product Dimensions | 138.25*85*36.5 mm |
| ISO Approved | ABYC/USCG Requirements |
| Fuse Type | Standard(ATC or ATO) |
| Type | Fuse Blocks |
NOTICE FOR YOU

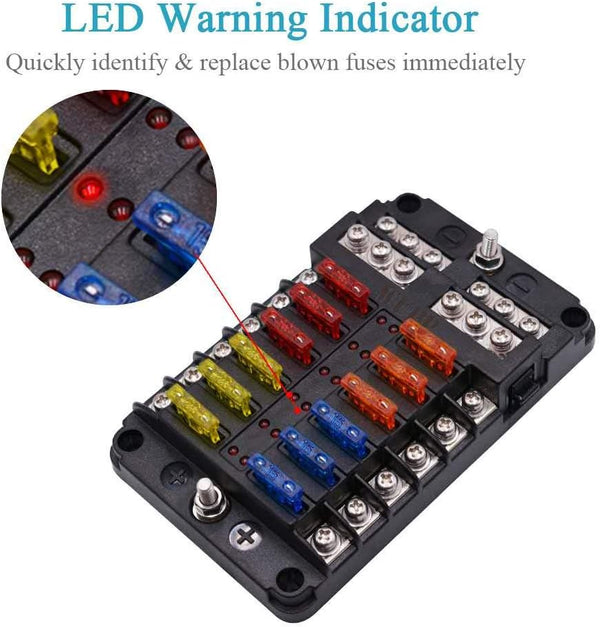

The advantage of our fuse block is that it has an indicator light, so when the fuse is blown, the indicator light will light up immediately to show you which fuse is blown. But you may get voltage across the circuit even with no fuse in place, that's because the fuse box has its own light circuit, the light circuit has resistance, so it displays some voltage.
So if you are extremely power-sensitive, be aware, this is the normal situation, please don't worry.
Thanks for your understanding.

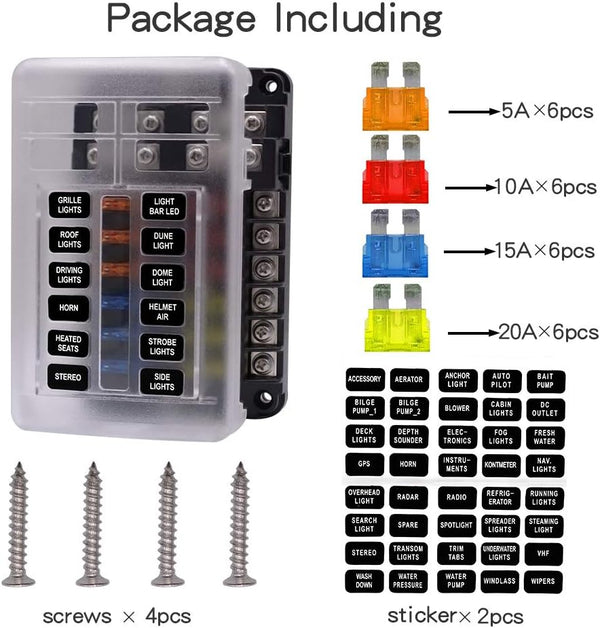

PACKAGE CONTENTS
- 1 x 12 Circuit Fuse Block w/ Neg Bus
- 6 x 5A orange fuse pieces
- 6 x 10A red fuse pieces
- 6 x 15A blue fuse pieces
- 6 x 20A yellow fuse pieces
- 2 x sticker
- 4 x screws
